Categories › Induction Kits/Intakes › Induction Kit for Suzuki Swift Sport 1.4 Turbo ZC33S (Right Hand Drive)

Company: Forge Motorsport

Induction Kit for Suzuki Swift Sport 1.4 Turbo ZC33S (Right Hand Drive)

Product code: FMINDK29

€443.64 Inc. VAT €372.81 Exc. VAT (VAT will be added during the checkout process) Estimate Delivery

Please select options and qty below:

Quantity:

Colour:

Finish:

Check your vehicle compatibility

Addons:

Suzuki Swift Sport 1.4 Turbo and Vitara 1.4 BoosterJet Breather Hose from €27.04 Inc. VAT

Colour:

More info

Crankcase breather hose for Suzuki Swift 1.4 Turbo (ZC33S) and Suzuki Vitara 1.4 Boosterjet. This hose connects between the cam cover and inlet pipe, a replacement for OEM Part No. 2009147 - Read More

StVZO Approval Disclaimer

I acknowledge that this product is limited to racing, private property, show purposes or export only. No StVZO approval. Not permitted on public roads. Approval or inspection may be required. I am responsible for legal compliance in my country.

Right Hand Drive

I understand this part only fits right hand drive (RHD) vehicles

Have A Question? Read Instructions?

Share Wishlist View Basket

Exceptional Service

10 Year Warranty

Shipping From Our EU Warehouse

Get a Delivery Estimate

Prefer to talk over the phone? Call us +49(0)3222/1097-308

Description

Product Description

Increased power and torque output
Improved sound characteristics of the engine
Improved visual impact of the engine bay

During our testing, we found that the location of the original air box was susceptible to a vast amount of heat soak. This is because the airbox air feed is placed directly above a very hot source of heat - the radiator. This led us to design and relocate where the air filter/airbox is housed in the engine bay. The Forge cold air intake system now cleverly draws air from within the Suzuki Swifts front bumper keeping the intake temperatures extra cool in any climate.

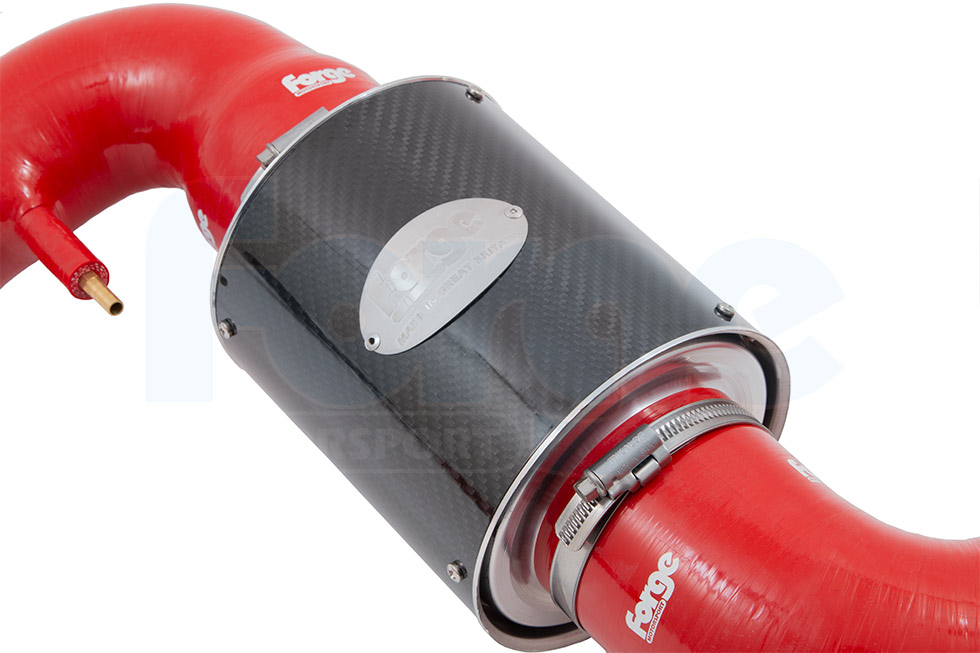

After extensive testing, we found that our carbon fibre canister filters worked the best. The filter element itself is provided by Pipercross, and is fully serviceable or replaceable if necessary. A replacement can be found here. The pipe work of the kit runs around the cold side of the engine and away from the engines turbo manifold; this again is to keep intake temperatures down as low as possible. In total, we observed intake temperatures fall from 39°C down to 26°C. These numbers will come down further still with the addition of our intercooler upgrade.

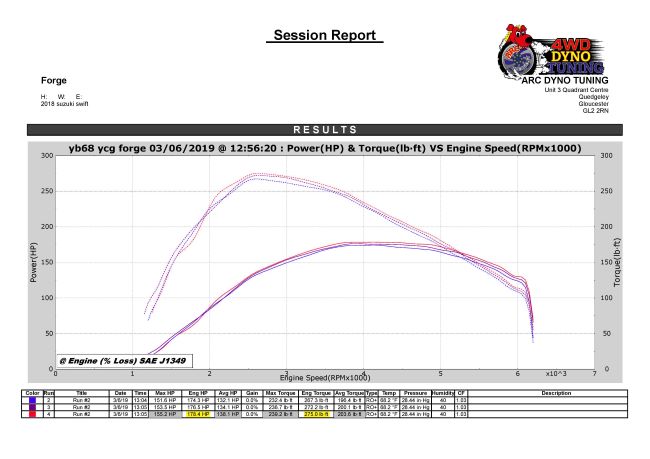

The Forge High Flow airbox produced an impressive increase of over 8BHP at 5500RPM and a gain of toruqe throughout the entire rev range on independent dyno testing.

The design of this kit has also introduced some excitement to the driving experience with a subtle yet characterful induction roar when on harder acceleration.

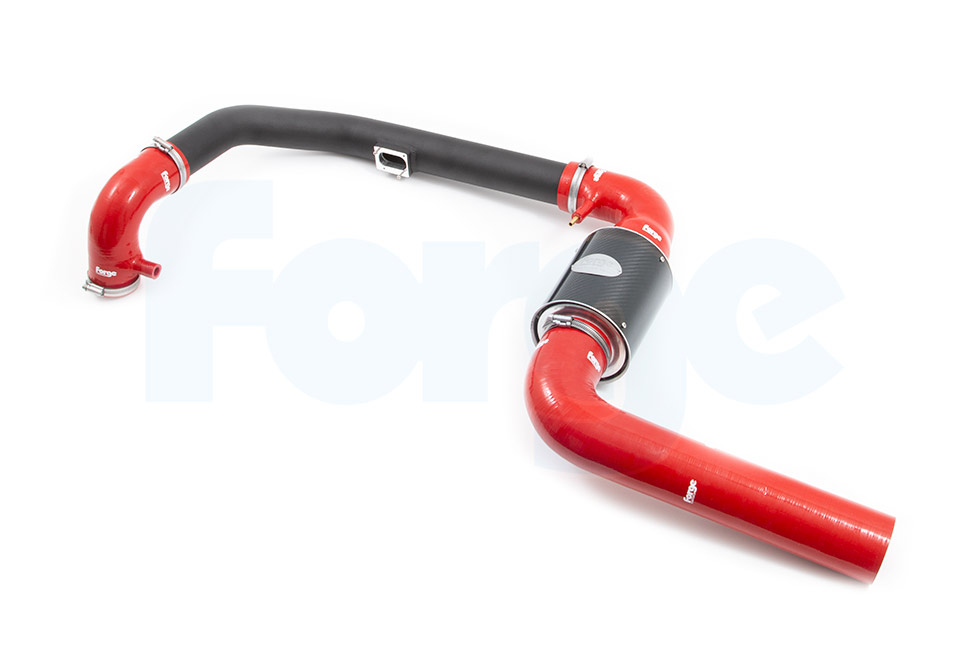

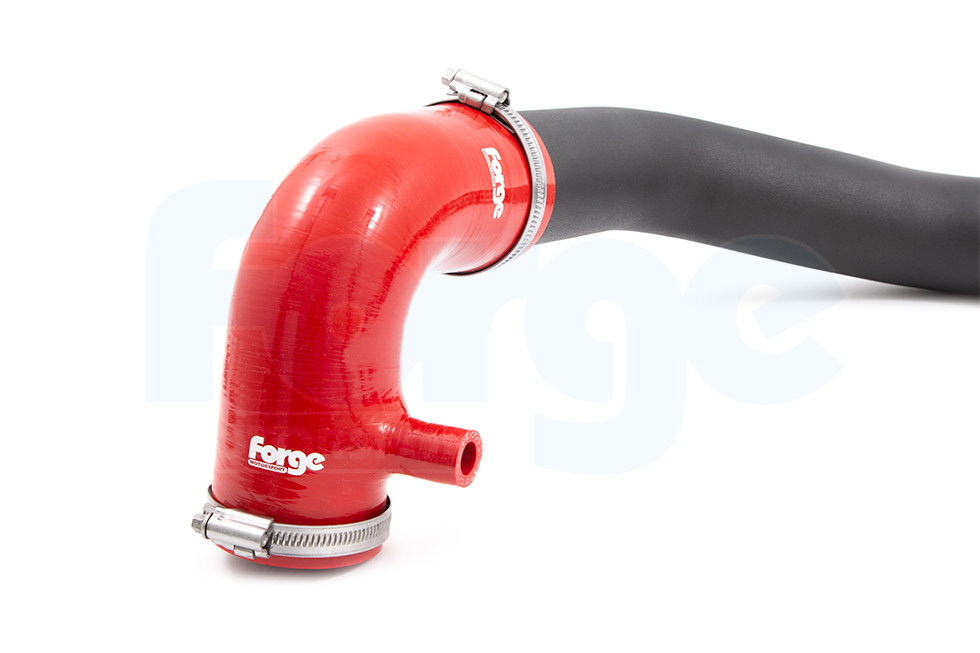

You will be very happy with the visual impact of the kit upon opening the bonnet. Every part of the kit from the handmade aluminium hard pipe to the bespoke silicone hose and the carbon fibre filter both look and feel high quality - quite simply, because they are!

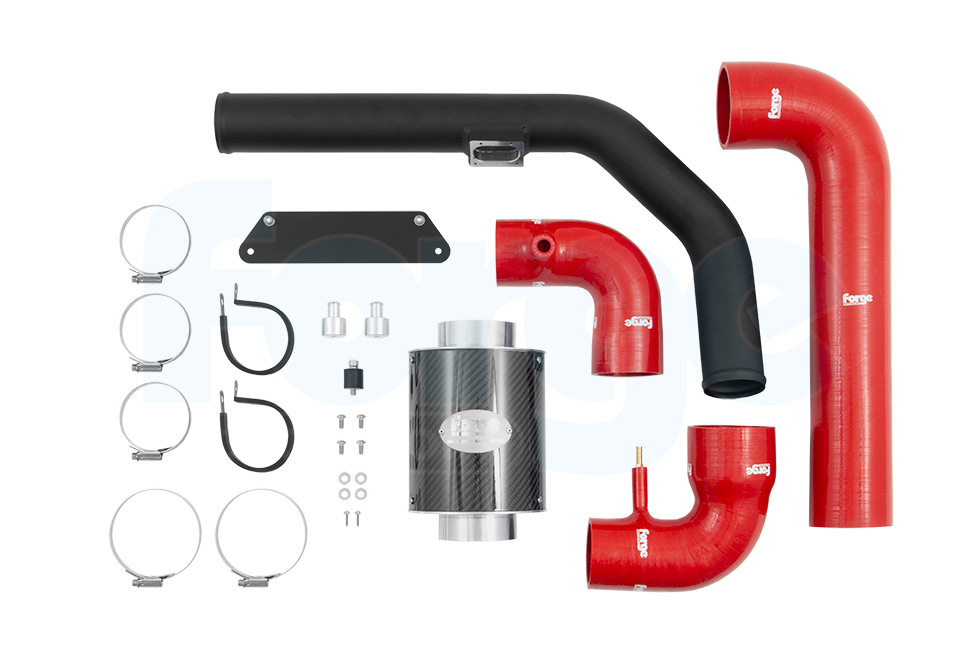

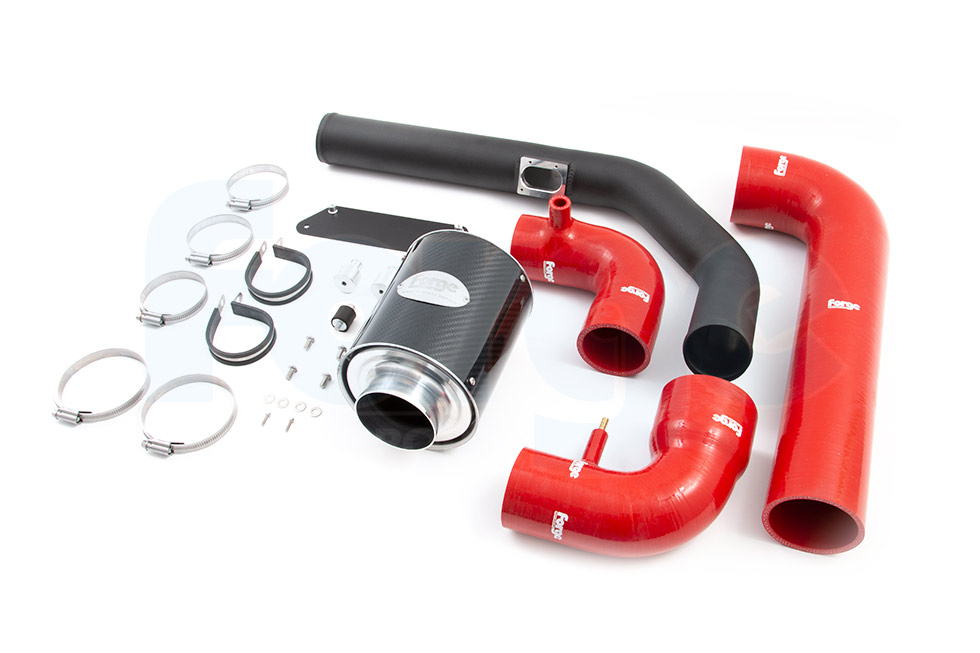

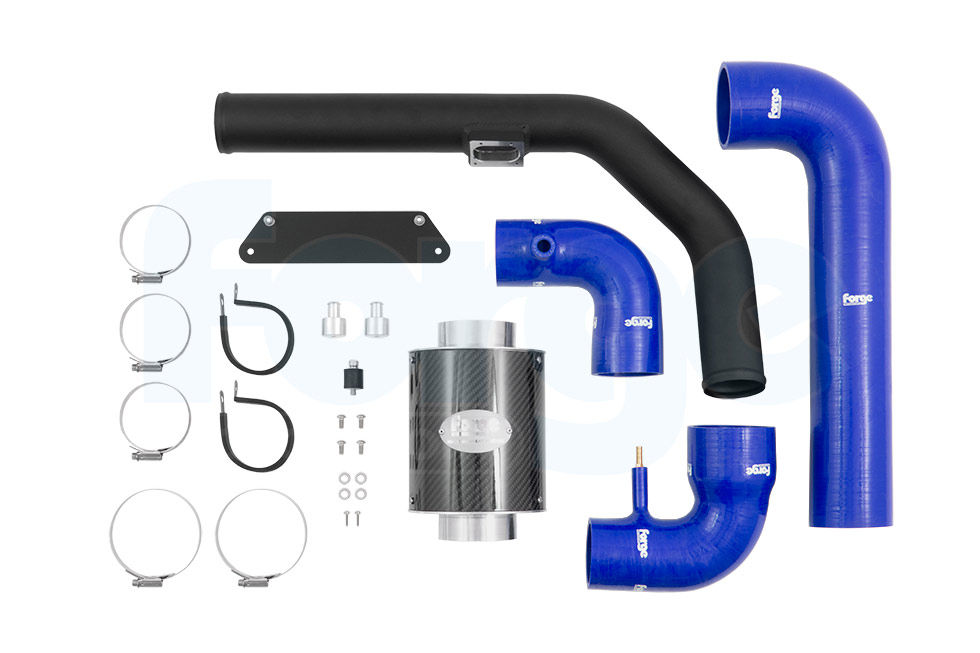

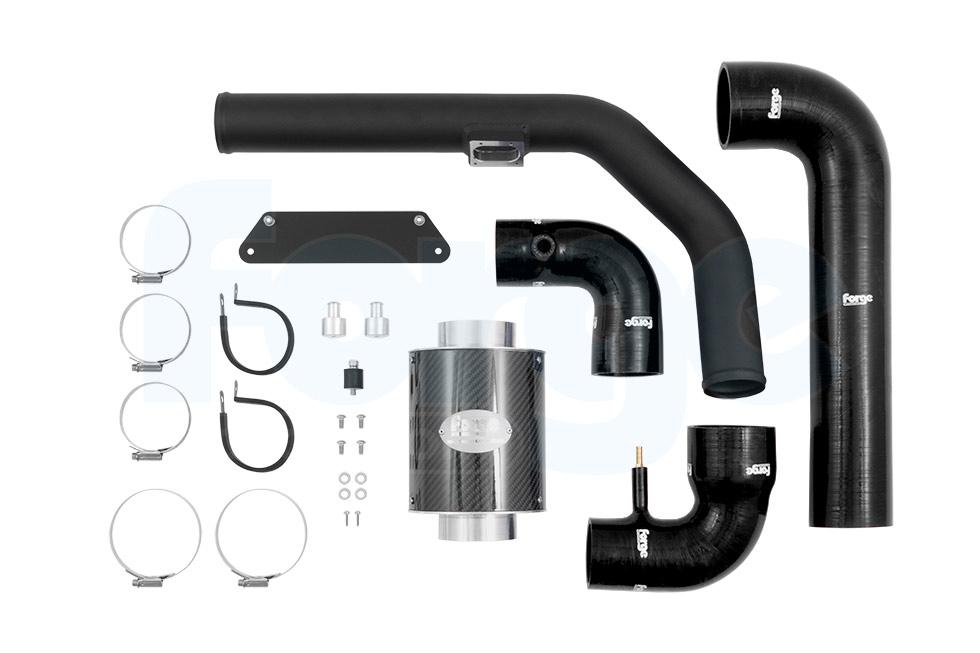

The kit comes complete with everything you need for installation, which can be carried out in around 40 minutes, including a set of full colour instructions.

This intake is designed for RHD vehicles and will NOT fit the LHD version. For the LHD, see here.

⭐ "Well what can I say? This induction kit is absolutely brilliant! The looks, the noise and power difference is unbelievable. The carbon fibre just finishes off the engine bay. The noise well is more than I expected sounds brilliant, it really does 'suck' and 'hiss' absolutely brilliant from a induction kit. The power difference is really noticeable when boosting its harder and harsher and just pulls.
Another great product from forge" ⭐

Check your vehicle compatibility: Click here

Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.

Product Reviews

Be the first to review this product

Want to leave a review?

Login Register FREE!

Compatible Vehicles

Click the triangles to find your car make and model. Note that the models listed here have either had the part fitted by us or a customer or they are listed as being compatible on industry parts databases. Where it has not been directly fitted by Forge there will then be a separate May Also Fit tab where the make and model will also appear and which details our no-risk approach to purchasing this product, so it is worth checking there as well.

If you need further assistance, please call us on +49(0)3222/1097-308 or email us.

Suzuki

Swift
- Sport 1.4 Turbo (ZC33S)

Instructions

Induction Kit for Suzuki Swift Sport 1.4 Turbo ZC33S (Right Hand Drive)

Warranty

10 Year Warranty Information

The majority of Forge Motorsport products come with a limited 10 Year Warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.

For further information, please call our customer service team on +49(0)3222/1097-308 or email info@forgemotorsport.eu.

Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.

This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.

Shipping

European Shipping

We ship to selected EU countries as displayed during the checkout process.

Delivery service charges will vary depending on the quantity of product ordered, the related parcel size, and your destination.

Our shipping methods ensure safe and timely delivery of your new Forge products. For further information on cost and delivery times, please contact us if you require any more information via our contact page.

We reserve the right to change the delivery service and our shipping providers at any time.

Once a product has left our warehouse and is in the possession of the shipping company, any claims must be made directly with that shipper, however we may be able to assist in some cases.

FAQ's and other info can be found here.

Manufacturer & EU Contact Details

Manufacturer

Company Name: Forge Motorsport
Address: Unit 1A, Ashville Trading Estate, Gloucester, GL2 5EU, United Kingdom
E-Mail: info@forgemotorsport.co.uk
Phone: +44 1452 380999

EU Responsible Person

Company Name: Milltek Sport GmbH
Address: Gottlieb-Daimler-Str. 1-3, 53520 Meuspath
E-Mail: info@millteksport.de
Phone: +49 (0) 3222 1097308

Expert Answers

Ask a Question

Submit Question Cancel
Submitted questions may be published on the website.

Hi, I have a non-hybrid ZC33S without ECU remapping. Will this intake give me 8 BHP without remapping? Thank you very much!

Yes.

Answered 1 year, 1 month ago

Hi My Swift sport ZC33S has already been "chipped" so would fitting an induction kit "upset" with the existing tune?

hello , the fitting of the forge motorsport will not effect the existing tune in a negative way, depending on the tune the intake will actually complement the engines performance.

1 Answered 2 years, 3 months ago

I have your cold air induction kit on my Swift sport ZC33S and love it. Need to replace the filter please?

you can order here https://www.forgemotorsport.co.uk/Replacement_Filter_for_FMINDK29_FMINDK32_and_FMINDK34--product--2280.html

Answered 2 years, 5 months ago

Hi just checking will this fit the 2020 swift sport hybrid? Many thanks

Hello , sorry this will not fit , please email me directly as we may have a development opportunity.

Answered 2 years, 11 months ago
