Description
Product Description
WARNING:
Installation of a boost solenoid is not for the tuning novice. Any boost controller manual or electronic must be fitted with caution.

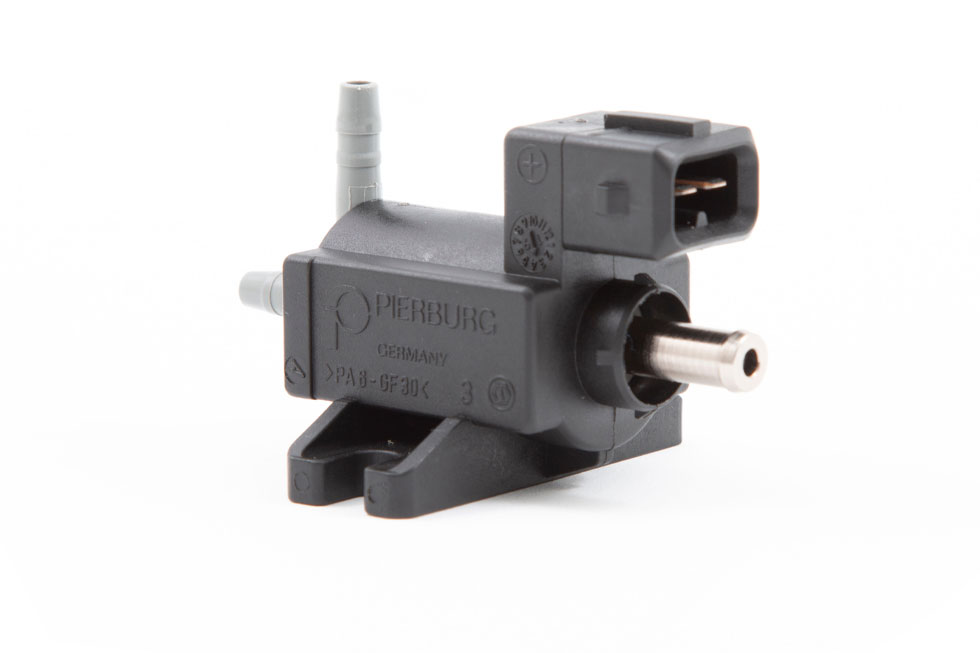

The Pierburg boost Control Solenoid allows for total flexibility in controlling boost wear fine tuning is needed. Misuse or improper tuning of this product can destroy your engine! Boost controllers should be set up with either road mapping or on a car bike or engine dyno to ensure safe AFRS are meet once boost levels are set.
If you are not familiar in engine tuning and the operation of boost controllers DO NOT attempt the to fit this product for control of your turbos boost pressure. Please always ensure your engine builder or professional tuner check the fitting and use of this product.

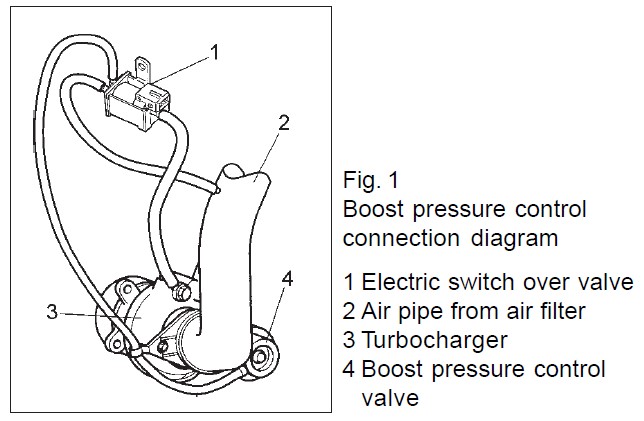

A boost controller is a device to control the boost level produced in the intake manifold of a turbocharged engine by affecting or changing the air pressure delivered to the mechanical wastegate actuator by bleeding of pressure before the actuator enabling your turbo to produce more boost.
A boost controller can be a simple manual control which can be also purchased from us in either a under bonnet application or in car. These can be found in the related products below.

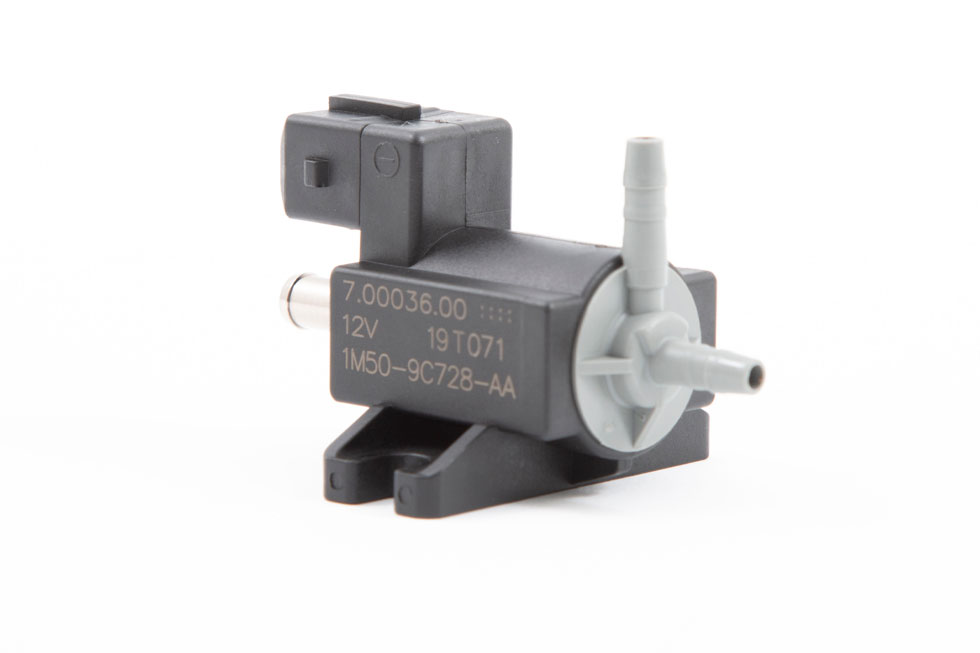

This is an excellent upgrade from the 2-port device fitted to many turbo-charged vehicles. Made by Pierburg, it is a very high quality replacement 3 port N75 valve for the following OEM part numbers:
1227883
1M5O-9C728-AA
2M5O-9K378-AA
This boost solenoid may be used to replace the solenoids listed above, alternatively it may be included as part of the engine management computer in a factory turbocharged car, or an aftermarket electronic boost controller.
In most cases the best way to control a boost solenoid is with standalone ECU management this way the boost control along with fuelling and engine timing can be be adjusted to ensure your engine performs at its best and safely.
Even with an electronic controller, actuator springs that are too soft can cause the wastegate to open before desired. Exhaust gas backpressure is still pushing against the wastegate valve itself. This backpressure can overcome the spring pressure without the aid of the actuator at all. Electronic control may still enable control of boost to over double gauge pressure of the spring's rated pressure.

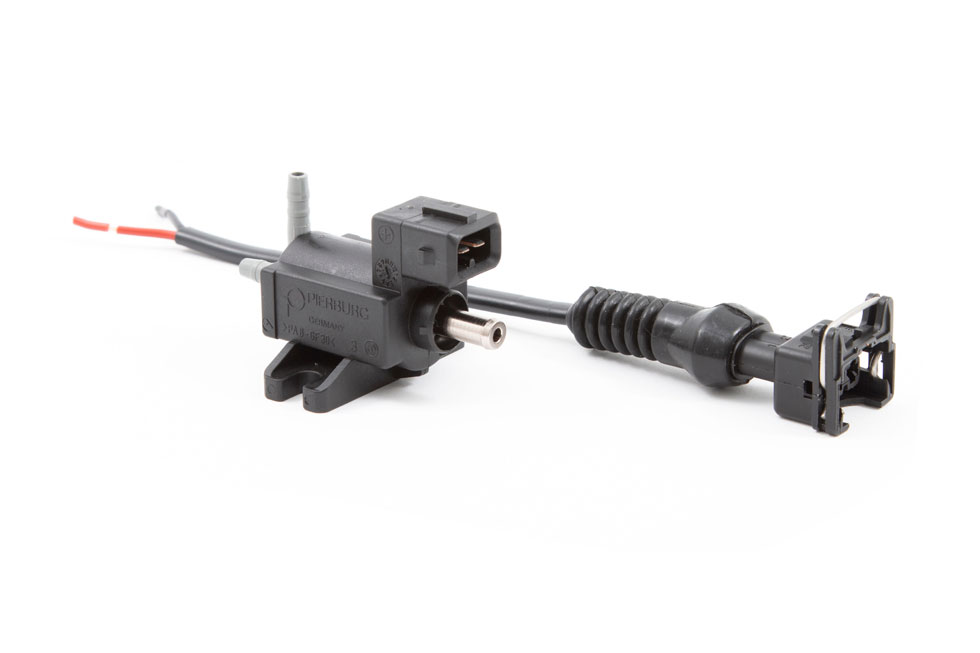

If you wish to purchase the Pierburg Solenoid Wiring Connector on it's own, you can do so here.
As this is not a Forge manufactured part, it is excluded from our lifetime warranty Forge Motorsport accept no liability for engine damage relating from this product due to incorrect fitting or misuse.
Check your vehicle compatibility: Click here
Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.
Product Reviews
Product Reviews
Be the first to review this product
Want to leave a review?
Login
Register FREE!
Compatible Vehicles
Warranty
10 Year Warranty Information
The majority of Forge Motorsport products come with a limited 10 Year Warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.
For further information, please call our customer service team on +49(0)3222/1097-308 or email info@forgemotorsport.eu.
Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.
This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.
Shipping
European Shipping
We ship to selected EU countries as displayed during the checkout process.
Delivery service charges will vary depending on the quantity of product ordered, the related parcel size, and your destination.
Our shipping methods ensure safe and timely delivery of your new Forge products. For further information on cost and delivery times, please contact us if you require any more information via our contact page.
We reserve the right to change the delivery service and our shipping providers at any time.
Once a product has left our warehouse and is in the possession of the shipping company, any claims must be made directly with that shipper, however we may be able to assist in some cases.
FAQ's and other info can be found here.
Manufacturer & EU Contact Details
Manufacturer
Company Name: Forge Motorsport
Address: Unit 1A, Ashville Trading Estate, Gloucester, GL2 5EU, United Kingdom
E-Mail: info@forgemotorsport.co.uk
Phone: +44 1452 380999
EU Responsible Person
Company Name: Milltek Sport GmbH
Address: Gottlieb-Daimler-Str. 1-3, 53520 Meuspath
E-Mail: info@millteksport.de
Phone: +49 (0) 3222 1097308
Expert Answers
I have an audi TT mk2 tfsi, would this fit my vehicle? this looks like the one that I have on but just want to make sure
hello
do you have the part number of the solenoid in question ?
Will this work on a 2009 mk1 vauxhall insignia 2.0 turbo petrol 4x4 220bhp?
Hello , you will need to cross reference your OEM part numbers
Hi Will this work on Sierra/Sapphire cosworth ?
hello , this would work with custom mapping (stand alone ecu or similar boost controller )
Hi I need to replace my broken solenoid the part number is 1m50-9c728 aa It's for a forge blow off valve peugeot 208gti 2017
hello , this is compatible with the forge blow off valve.
Hi there, will this work on a 2004 Mk4 Golf 1.8T AUQ 180bhp engine?
Hi Brian,
thank you for your question
This is a universal l product. i would suggest looking at the oem part numbers we list in the description of the product then check your solenoid to see if the part numbers match :)
Hi there I drive a 2012 punto evo supersport and it’s thrown an engine code p1064 , which states my cars actuator isn’t opening and starving cylinder 4 and causing an over boost , I don’t know what part I need to purchase I believe it’s just the solenoid if I could be pointed in the right direction
hello, this solenoid may not be compatible.
Will this fit 2010 st225?
Hello , you will need to cross reference your oem part number.
Hello, can this part be used to replace the one that comes stock with abarth 500 tjet, to be used on td04 conversions? The stock plugs need to be changed? Best regards
hello , this will need to have a custom map to re calibrate your boost control.
