Company: Forge Motorsport

Turbo Blanket for Fiat Abarth 500/595/695 (IHI Turbo)

Product code: FMTUBL16
€154.69 Inc. VAT €129.99 Exc. VAT (VAT will be added during the checkout process) Estimate Delivery

Please select options and qty below:

Check your vehicle compatibility

Addons:

More info Short Shifter for Fiat Abarth 500/595/695 - Read More

Have A Question? Read Instructions?

Prefer to talk over the phone? Call us +49(0)3222/1097-308

Description

Product Description

Highlights:

  • Direct replacement
  • Full stainless steel fitting kit included
  • Withstands temperatures of 1200°C
  • High temperature Silica fabric
  • Carbon fabric outer shell
  • Stainless Steel Rivets / Eyelets

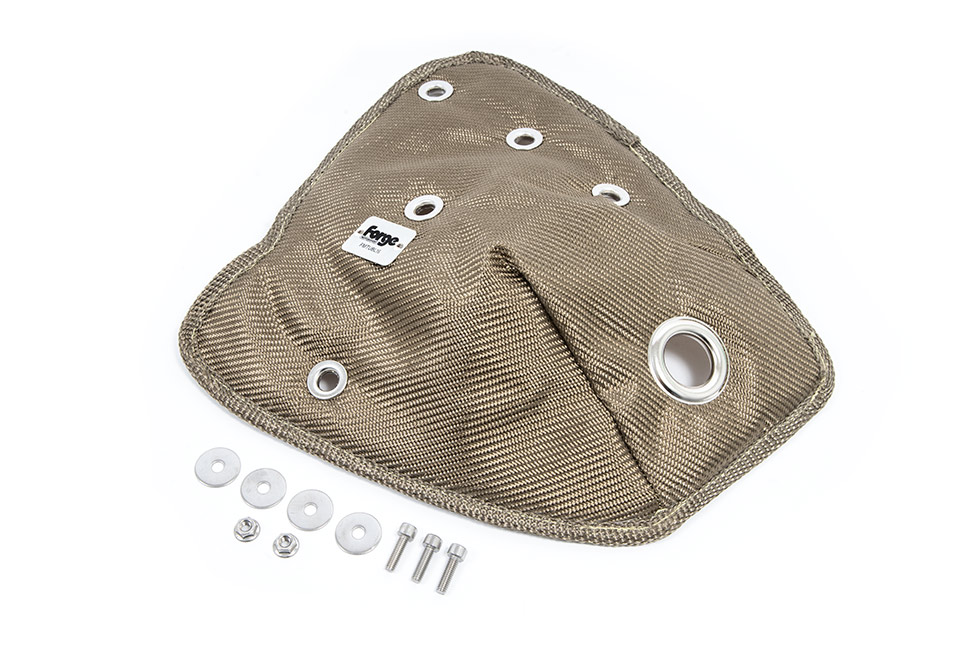

FMTUBL16 is a turbo blanket which has been designed as a bespoke heat management blanket which is tailored perfectly to fit the IHI turbo on the Fiat Abarth. This design has been created to withstand the harshest of environments and proven to withstand temperatures up to 1370°C (2500°F) of radiant heat, which will assist in protecting and prolonging the life of engine components..

Design innovation keeps the heat of the exhaust gases contained within the hot side of the turbocharger, away from the cool side and the intake path which helps reduce turbo lag and air intake temperatures resulting in more power.

Complimentary Products



Check your vehicle compatibility: Click here

Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.

Associated Products



Safety Information

Toxicological and Ecological Information

Acute Toxicity: According to its composition, this product should not be harmful in normal conditions of use.

Local Effects:

  • Inhalation: Possible irritation of respiratory system. At high temperatures, products of thermal decomposition can be irritating to respiratory system.
  • Ingestion: Can be considered not harmful if swallowed.
  • Skin Contact: Can be considered as non-irritating to skin. Contact with the product, when handled at high temperatures, cause serious burns. At high temperature, products of thermal decomposition can be irritating to skin.
  • Eye Contact: Can be considered as non-irritating to eyes. Contact with the product, when handled at high temperatures, can cause serious burns. At high temperature, products of thermal decomposition can be irritating to eyes.
  • Ecotoxicity: Inert material. Persistence and degradation: Not biodegradable on the base of its structure.

Other Information:

  • The information given in this Material Safety Data Sheet is based on knowledge available at the time of compilation and is intended to describe the product only in terms of health and safety requirements. It does not signify any warranty with regard to specific properties or specifications. The present product is designed for general industrial use.

First Aid Measures:

Eye Contact: Remove particles remaining under the eyelids. Wash well open immediately, abundantly and thoroughly with water. If irritation persists, consult an ophthalmologist.

Skin Contact: Cool skin with cold water after contact with molten compound and remove product with vegetable oil or paraffin. In case of adhesion, do not try to remove the product. Treat the affected areas as thermal burns.

Inhalation: Dust inhalation, inhalation of vapours from heated products, inhalation of vapours due to thermal decomposition. Move to fresh air and in case of persistent problems consults a doctor.

Product Reviews

Product Reviews

Be the first to review this product

Want to leave a review?

Login Register FREE!

Compatible Vehicles

Click the triangles to find your car make and model. Note that the models listed here have either had the part fitted by us or a customer or they are listed as being compatible on industry parts databases. Where it has not been directly fitted by Forge there will then be a separate May Also Fit tab where the make and model will also appear and which details our no-risk approach to purchasing this product, so it is worth checking there as well.

If you need further assistance, please call us on +49(0)3222/1097-308 or email us.

Fiat

Instructions

Warranty

10 Year Warranty Information

The majority of Forge Motorsport products come with a limited 10 Year Warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.

For further information, please call our customer service team on +49(0)3222/1097-308 or email info@forgemotorsport.eu.

Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.

This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.

Shipping

European Shipping

We ship to selected EU countries as displayed during the checkout process.

Delivery service charges will vary depending on the quantity of product ordered, the related parcel size, and your destination.

Our shipping methods ensure safe and timely delivery of your new Forge products. For further information on cost and delivery times, please contact us if you require any more information via our contact page.

We reserve the right to change the delivery service and our shipping providers at any time.

Once a product has left our warehouse and is in the possession of the shipping company, any claims must be made directly with that shipper, however we may be able to assist in some cases.

FAQ's and other info can be found here.

Manufacturer & EU Contact Details

Manufacturer

Company Name: Forge Motorsport
Address: Unit 1A, Ashville Trading Estate, Gloucester, GL2 5EU, United Kingdom
E-Mail: info@forgemotorsport.co.uk
Phone: +44 1452 380999

EU Responsible Person

Company Name: Milltek Sport GmbH
Address: Gottlieb-Daimler-Str. 1-3, 53520 Meuspath
E-Mail: info@millteksport.de
Phone: +49 (0) 3222 1097308

Expert Answers

Submit Question Cancel
Submitted questions may be published on the website.

I was wondering if the ihi turbo blanket for the abarth will fit with the OEM catalytic converter heat shield on?

hello , the lower part of the oem heat shield stays in situ , yes this can be fitted with the OEM exhaust system.
