Description
Product Description
This product only works in conjunction with FMINDK35.
We recommend servicing your valve every 3 years, or 20,000 miles, whichever comes sooner
After the success of the FMDV22 Forge Motorsport has now developed a recirculating Valve option for the VAG 1.5 TSI engine. It uses our tried and tested FMDV008 recirculation valve, this valve has been with us for some time and has proved time and again to be tough, durable and ultra-reliable. By adding this valve, it prevents turbo surge and prolongs the life of your engine’s turbocharger.
As the engine does not have a diverter valve fitted as standard, Forge have reused our tried and tested FMDV008 valve that increases the throttle response during gear changes by reducing turbo lag. It has been designed to help the turbocharger maintain its rotational speed ready for when you accelerate, whilst also taking the strain away from the impeller. Without removing this stress from your turbo, it could cause premature failure, especially on engines and modified vehicles.
Like with all our valves you are able to customise it to fit your application with two uprated springs provided in the kit. Due to its clever design, changing the spring is a very simple process, simply undo the fasteners attaching the valve top and remove the spring. Its that easy!
Due to the exposed position of the OEM boost pipe and the nature of an engines heat cycle, the plastic the OEM pipe is made from can deteriorate over time becoming brittle and susceptible to boost leaks.
This kit totally replaces this plastic pipe from turbo to manifold with a silicone hose (available in a choice of colours), and everything else you need to install the valve is included in the kit together with full instructions.
• Anodised CNC machined billet couplers and components along with a tuneable CNC machined twin piston Forge Motorsport valve
• Custom colours are available but will incur a 50% none refundable deposit and a lead time of 8-10 weeks
• Unlike other valves on the market the Forge valve will not bring on any check engine lights (EML)
• The Forge silicone hose in this kit has been designed to include a quality inner liner of modified silicone known as Fluorosilicone. This ensures the colour of the silicon hose stays bright and vibrant and unlike our competitors will not deteriorate over time
• This means Forge Motorsport hoses are suitable to be used with modern long-life coolants, Organic Acid Technology coolants (O.A.T.) and oil mist
• The construction of the hose has been engineered to exceed that of the OEM fitments
• The use of a Fluorosilicone liner ensures that Forge silicone hoses are the clear market leader
• Lifetime warranty

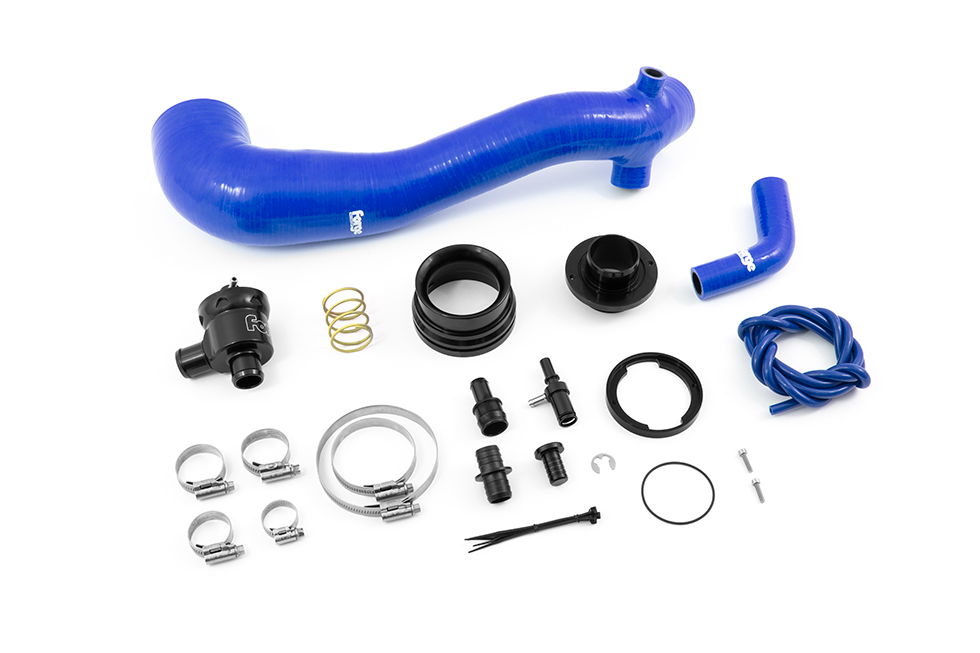

In the Box:
1x Recirculating Dump Valve
1x Boost Tap/take Off (Including Cork Gasket and Screws)
1x Throttle Body and Turbo Couplers
2x Silicone Hose (Red, Blue or Black)
6x Hose Clamps
1x Roll of Vacuum Tubing
1x Norma Adaptor Fitting
1x Blanking Plug
Check your vehicle compatibility: Click here
Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.
Product Reviews
Product Reviews
Be the first to review this product
Want to leave a review?
Login
Register FREE!
Compatible Vehicles
Instructions
Recirculation Valve for VW, Audi, Seat & Skoda 1.5 TSI
Warranty
10 Year Warranty Information
The majority of Forge Motorsport products come with a limited 10 Year Warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.
For further information, please call our customer service team on +49(0)3222/1097-308 or email info@forgemotorsport.eu.
Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.
This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.
Shipping
European Shipping
We ship to selected EU countries as displayed during the checkout process.
Delivery service charges will vary depending on the quantity of product ordered, the related parcel size, and your destination.
Our shipping methods ensure safe and timely delivery of your new Forge products. For further information on cost and delivery times, please contact us if you require any more information via our contact page.
We reserve the right to change the delivery service and our shipping providers at any time.
Once a product has left our warehouse and is in the possession of the shipping company, any claims must be made directly with that shipper, however we may be able to assist in some cases.
FAQ's and other info can be found here.
Manufacturer & EU Contact Details
Manufacturer
Company Name: Forge Motorsport
Address: Unit 1A, Ashville Trading Estate, Gloucester, GL2 5EU, United Kingdom
E-Mail: info@forgemotorsport.co.uk
Phone: +44 1452 380999
EU Responsible Person
Company Name: Milltek Sport GmbH
Address: Gottlieb-Daimler-Str. 1-3, 53520 Meuspath
E-Mail: info@millteksport.de
Phone: +49 (0) 3222 1097308
Expert Answers
Does this valve make noise as blow off valve?
this will not however here is the link to the one that will- https://www.forgemotorsport.co.uk/product-filter/Blow_Off_Valve_for_VW_Audi_Seat_Skoda_15_TSI_up_to_2022--product--1802.html
I recently installed this recirculating kit on my Skoda Scala and it seems to work, but the valve orientation as shown in the pictures and in the installation manual seems incorrect. For all dump valves, the pressure side is at the bottom of the valve, on the opposite side of the vacuum port. Since dump valves and recirculating valves work on the same basic principle, the valve should be installed with the bottom oriented towards the boost pipe and not the intake pipe. Can you confirm this?
hello .the boost should enter the side port as per the instructions , this is to prevent the piston from lifting
Hello. The DV 008 remains open at Idle due to the 1.5 tsi vacuum on the large plunger surface. Installed Blue spring also pulls pluger open at idle. Red spring installed and even this one is slighty pulled open by the vacuum by the 1.5 tsi and seems not ideal. To get fast response and a good run at idle the valve must be closed at idle and should only open after trottle is releases and imidiatly close again. Any advise to get the valve closed at idle?
The valve is meant to be open during idle (sucked open via the port at the top of the valve as the flow at this port reverses to vacuum when off the throttle); engine stall is likely if the valve is forced shut during idle as the charged air has nowhere to go - with the valve open the charged air is diverted to the turbo inlet hose to avoid build up of pressure when the throttle body closes off when off the throttle.
Hello Forge, I want to buy the Recirculation Valve set FMDV30, and install this on a Tiguan 1.5 TSI, MC: DADA. As I don't want the obvious blow-off valve sound, the Recirculation Valve suits better :) . If i am correct I also need the air intake silicone hose between the turbo and the air-filter, which is part of intake filter set FMINDK35. However, I want to maintain my original air filter box. So I do not need the cone-filter and bracket. Only the silcone hose, with recirculation valve connection, for connecting the turbo to the air filter box, and the required mounting parts (such are turbo interface flange), right? :) Questions: 1. So for this update I need set FMDV30 and FMINDK35, but want should I buy if i want FMINDK35 without the cone filter parts? What set or parts (#PN?) should I buy in stead of the total filter set FMINDK35? (I want to keep using my originale airbox filter. I will not use the cone filter.) 2: Is the silicone hose of set FMINDK35 compatible to connect with originale filter air box? Many thanks!
Hello , I’m sorry but the intake hose will not fit with the oem airbox, with the open cone intake the recirculating valve is actually fairly loud and the valve acoustics can certainly be heard, we would recommend buying the atmospheric version if you wish to use the oem intake.
Hello, I have a 2022 TAOS, this should fit right?
Hello , you will require our intake to run this valve , also as your vehicle is a 2022 model it may need the valve FMDV39 please email me with a picture of your engine and I will be able to advise you.
Hello i have a Tiguan 1.5 TSI . Can i install this kit to m my car?
Hello, thank you for your question, yes this will fit you vehicle
Hello. I have a 1.5 TSI Tiguan. Can i install this kit to my car?
This will fit your 1.5 Tiguan Tsi
I have a 1.5 tsi golf. Can I instal this kit in my car? Is there something I should know? with this I will get the famous stututu?
Hello , the product you need is FMDV22 , please choose the additional breather adapter if needed, the website description shows you how to identify this, this valve will give you the famous whoosh noise when the throttle is lifted or between gear changes.
I Have a 1,5 tsi (my19) skoda karoq with engine code DADA can i install this kit in my car and plug all the other hoses on the side and use only the recirculation valve (I don't want to use the other kit with the blow off valve) or not? thank you in advance.
Hello , if you wish to run the recirculation version you will also need to install our induction kit FMINDK35.
