Description
Product Description
These are the individual springs sold in our FMDVTUN kit. Please select the colour you require using the options above.

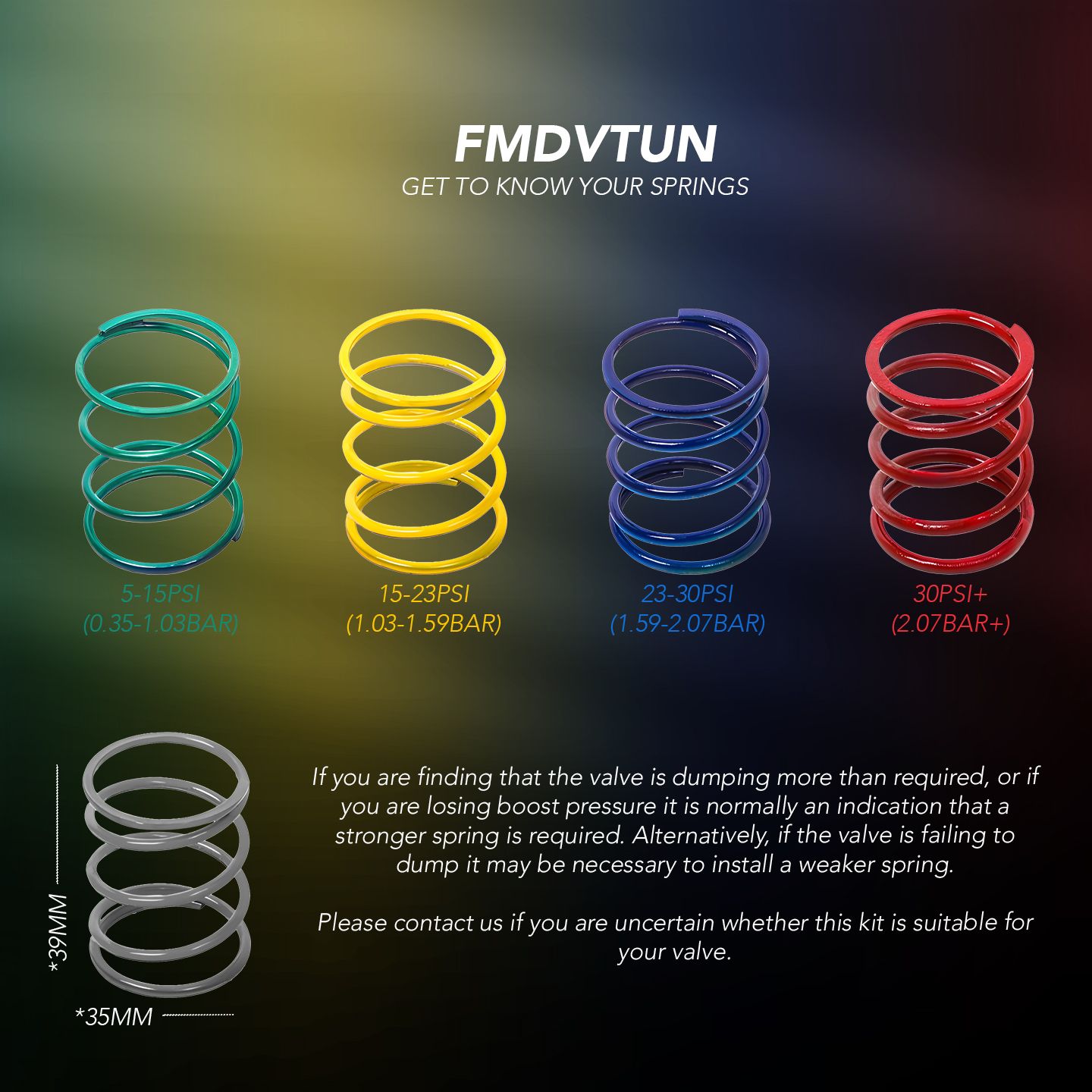

Please check the measurements of your spring against those pictured before purchasing
If you are finding that the valve is dumping more than required, or if you are losing boost pressure it is normally an indication that a stronger spring is required. Alternatively, if the valve is failing to dump it may be necessary to install a weaker spring. Please note that fitting a stronger spring into a valve will not increase boost pressure, unless existing pressure is being lost. Failure to allow the valve to operate by installing a spring which is too strong, may cause damage to the turbocharger.
Please also note that the red coded springs should not be installed in the DVR or DV007 diaphragm valves.

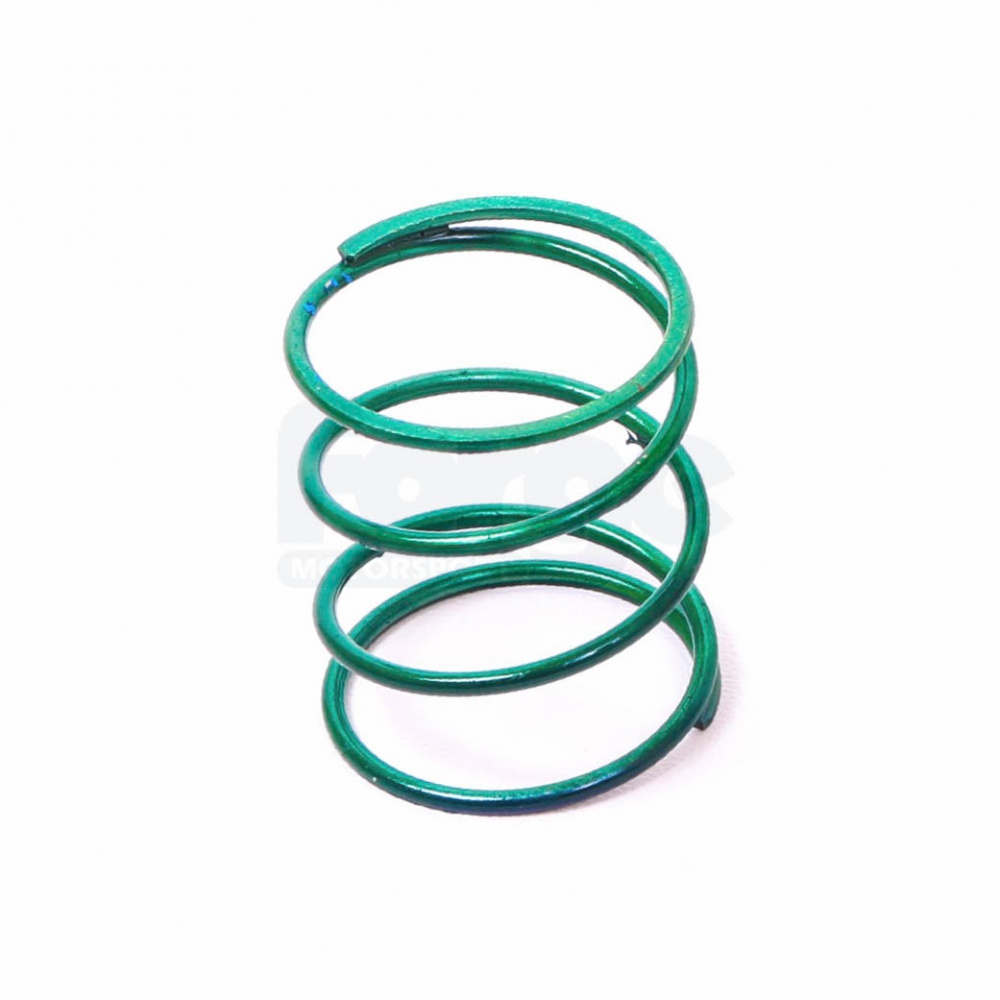

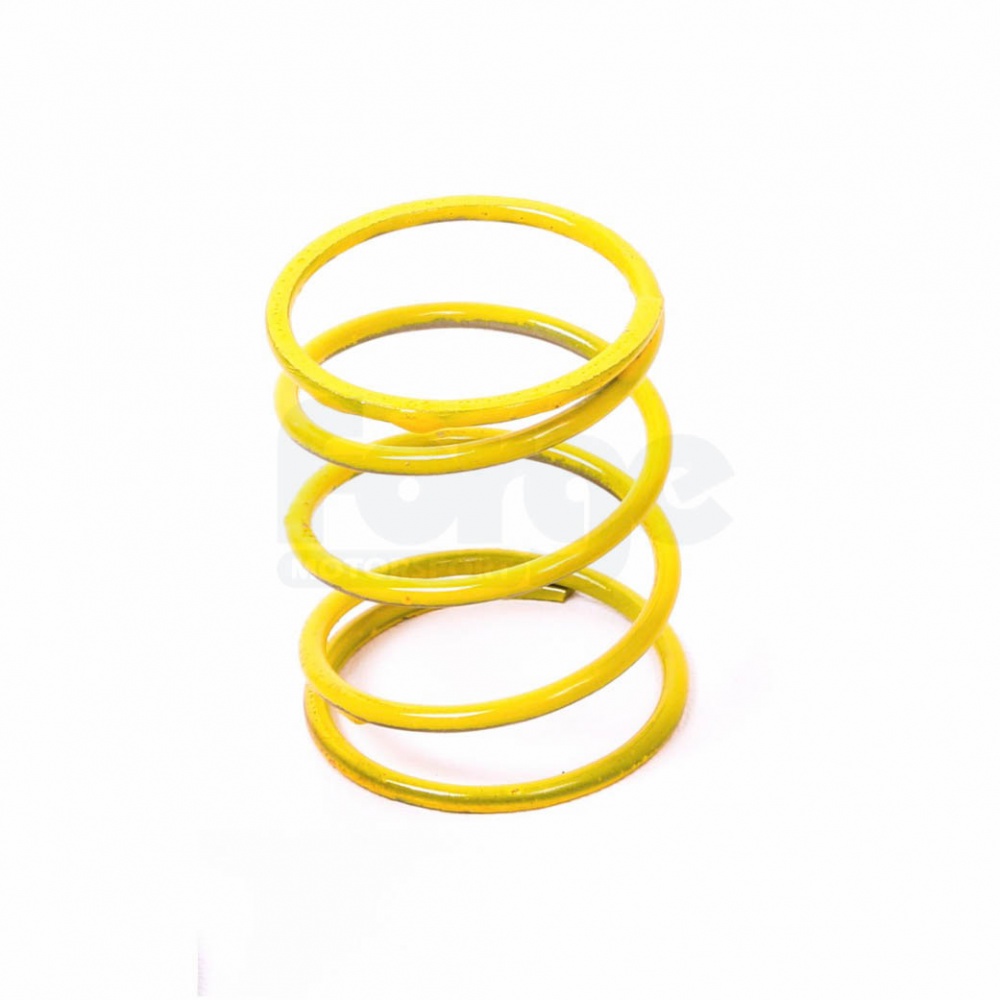

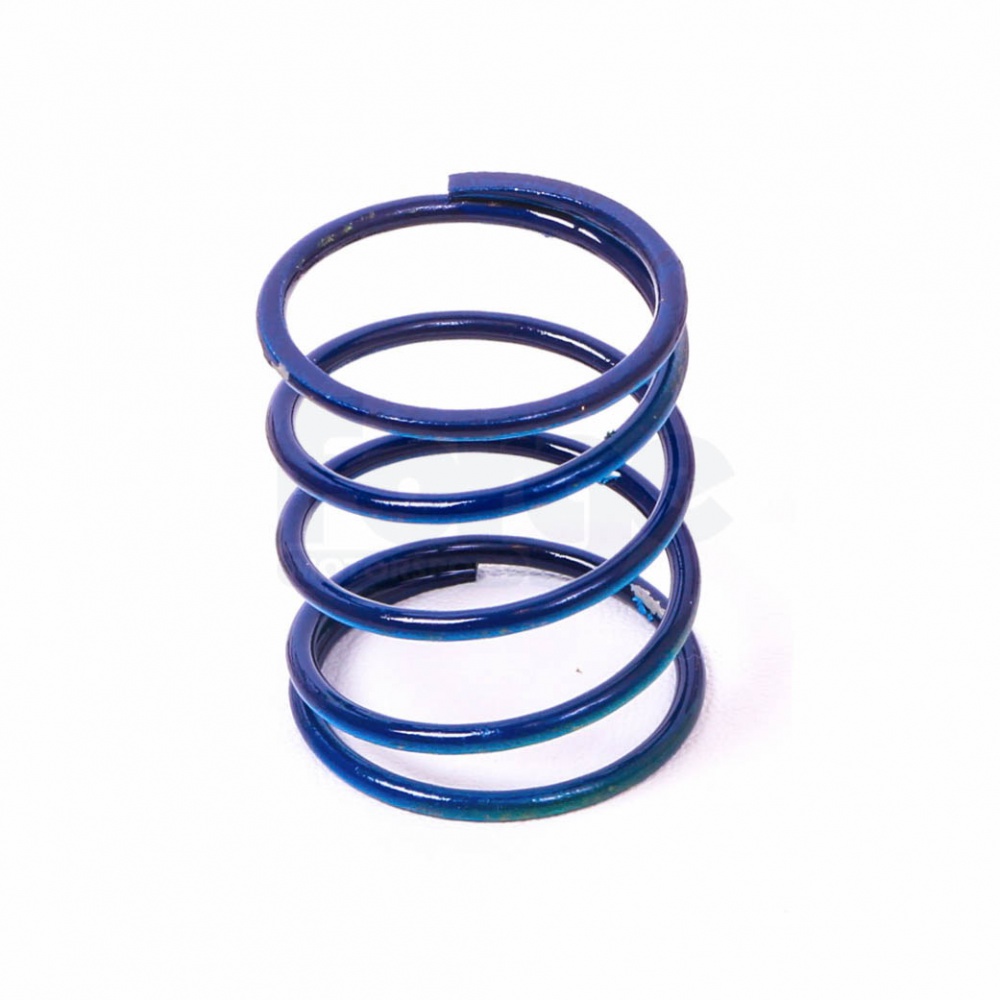

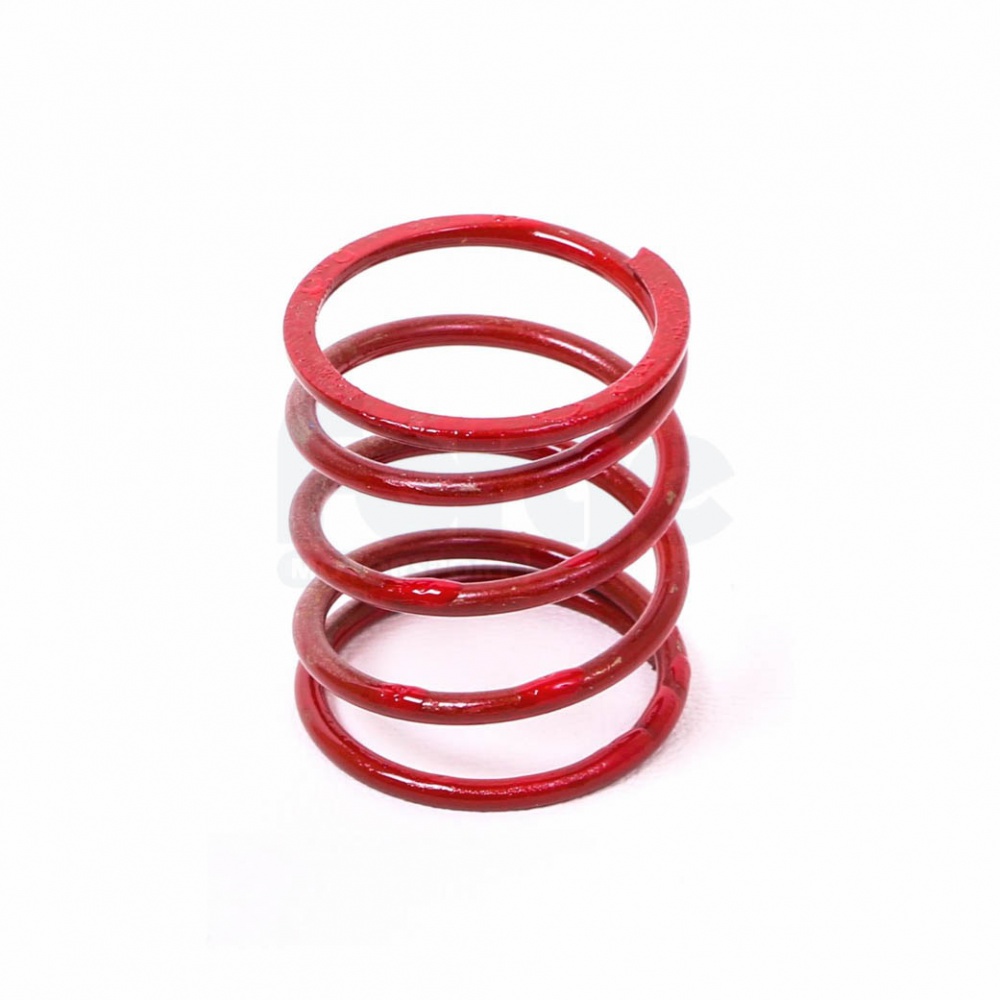

Valve Spring color coding: Green - 5-15 PSI (0.35-1.03 Bar), Yellow - 15-23 PSI (1.03-1.59 Bar), Blue - 23-30 PSI (1.59-2.07 Bar), Red - 30 + PSI (2.07 Bar +)
*The above figures are estimates only and should only be considered as a guideline*
Note: Serious or fatal damage may occur to the engine and associated components if this product is incorrectly matched to the individual engine requirements. Forge Motorsport nor any of it’s authorised distributors can assume any responsibility for any adverse effects resulting from the installation of this product. Please contact us if you are uncertain whether this kit is suitable for your valve.
*Please Note - The colours of the springs illustrated may differ to what you receive. All spring kits are brand new but are not sprayed. Colour is used as an identifier*
Check your vehicle compatibility: Click here
Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.
Product Reviews
Product Reviews
Be the first to review this product
Want to leave a review?
Login
Register FREE!
Compatible Vehicles
Warranty
10 Year Warranty Information
The majority of Forge Motorsport products come with a limited 10 Year Warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.
For further information, please call our customer service team on +49(0)3222/1097-308 or email info@forgemotorsport.eu.
Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.
This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.
Shipping
European Shipping
We ship to selected EU countries as displayed during the checkout process.
Delivery service charges will vary depending on the quantity of product ordered, the related parcel size, and your destination.
Our shipping methods ensure safe and timely delivery of your new Forge products. For further information on cost and delivery times, please contact us if you require any more information via our contact page.
We reserve the right to change the delivery service and our shipping providers at any time.
Once a product has left our warehouse and is in the possession of the shipping company, any claims must be made directly with that shipper, however we may be able to assist in some cases.
FAQ's and other info can be found here.
Manufacturer & EU Contact Details
Manufacturer
Company Name: Forge Motorsport
Address: Unit 1A, Ashville Trading Estate, Gloucester, GL2 5EU, United Kingdom
E-Mail: info@forgemotorsport.co.uk
Phone: +44 1452 380999
EU Responsible Person
Company Name: Milltek Sport GmbH
Address: Gottlieb-Daimler-Str. 1-3, 53520 Meuspath
E-Mail: info@millteksport.de
Phone: +49 (0) 3222 1097308
Expert Answers
I have a Fiesta ST MK 8.5 with Revo stage 1 (along with Airtec crossover pipe and open cone induction, Airtec throttle body elbow, and Milltek GPF back in case it makes a difference to your answer) and the boost gauge on the dash is showing a max of around 22PSI. Does that mean I should stick with the fitted yellow spring with the BoV kit (FMDV35) or use the supplied blue one? It looks like the boost is almost in the middle of the two spring ratings.
Yes please change to the blue spring. Please take care to not dislodge the lid o ring when changing the spring which is located at the top of the main body lid thread at the body to lid underside mating face, ensuring it is properly recessed before replacing the lid.
Dose this fit a1.8t 007 forge valve
Yes
does this spring fit the FMDV-22
Hello
Yes this product is compatible with FMDV22
With fitting the yellow boost spring to the FMDVRMA valve (counter balance springs) does the idle spring need to be changed to yellow also? Megane RS 265.
Not necessarily, only consider changing the smaller idle (product code FMSS114) to a stronger option if you notice rough idle and/or engine stall.
Does this fit the fmdv004 bov aswell ?
Yes, this size spring is a replacement for the FMDV004 main boost spring; the smaller FMDV004 idle spring is available under the the product code FMSS114.
Is this compatible with FMDV35?
Hello
Yes this product is compatible with your dump valve.
Does this fit the Forge recirculation valve for Corsa VXR?
No, the correct spring specification (size) is the part number FMSS114.
Are these direct replacements for the FMDV21 for ZC33S??
Yes the spring specification FMDVSU110 is compatible with the FMDV21 valve for the Suzuki Swift & Vitara (1.0 & 1.4 BoosterJet & Sport) models.

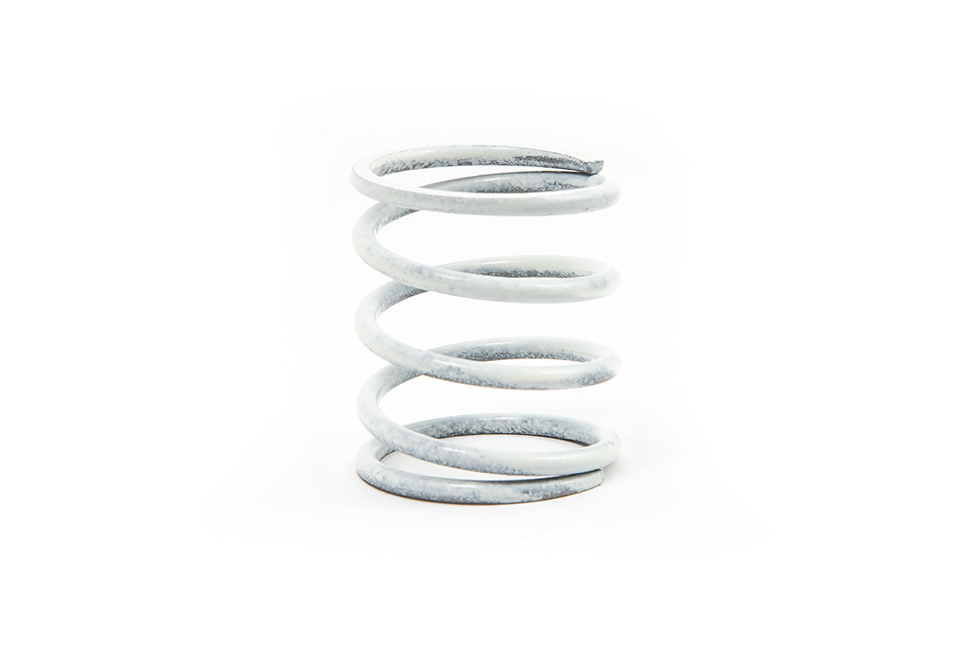

What psi rating is the white spring?
Depending on application this spring should be sufficient to support over 3 bar of boost
I have the FMDVMK7A-8LA Valve and my car is running stage 3, do I use the blue spring that's supplied or do I need the red. If so is this the right one (Product code: FMDVSU110)
Hi Nick, i would try fitting the blue spring and as long as it holds boost and the valve does not leak air on acceleration then it will be fine. for any reason the blue spring is not sufficient then the part number you will need for the red spring would be FMSS114
I have attached a link below, you will just need to select red from the drop down menu
https://www.forgemotorsport.co.uk/Uprated_Small_Spring_Single--product--833.html
What is the outside diameter of this spring and the overall length under no compression? Thanks
The outside diameter is 35mm, and the height under no compression is 39mm.
