Description
Product Description

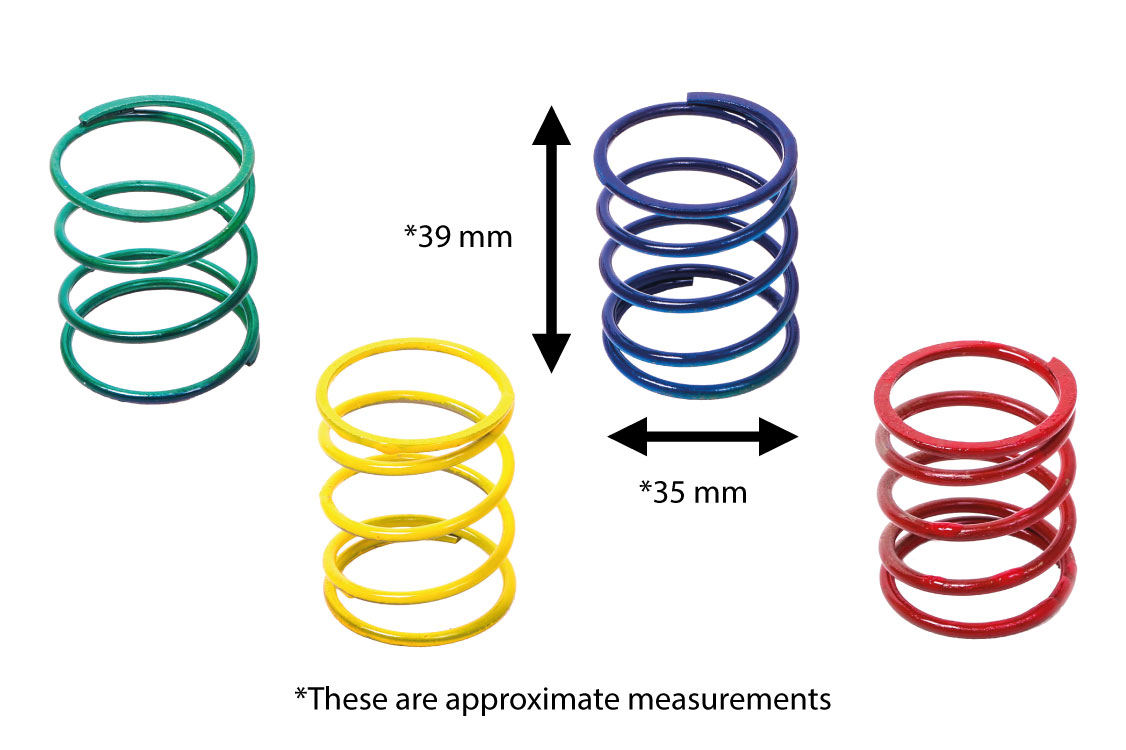

Please check the measurements of your spring against those pictured before purchasing
If you are finding that the valve is dumping more than required, or if you are losing boost pressure it is normally an indication that a stronger spring is required. Alternatively, if the valve is failing to dump it may be necessary to install a weaker spring. Please note that fitting a stronger spring into a valve will not increase boost pressure, unless existing pressure is being lost. Failure to allow the valve to operate by installing a spring which is too strong, may cause damage to the turbocharger.
Please also note that the red coded springs should not be installed in the DVR or DV007 diaphragm valves.

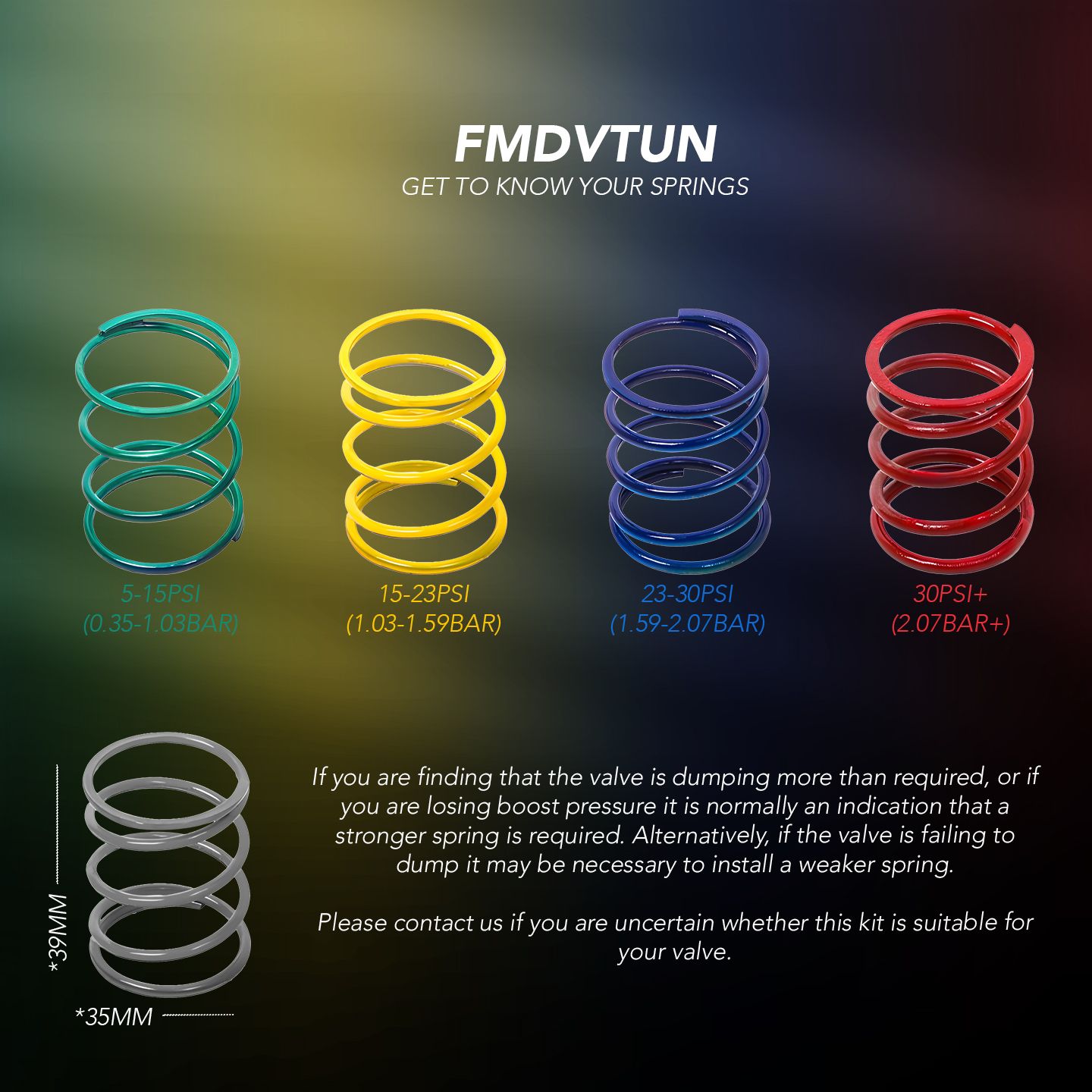

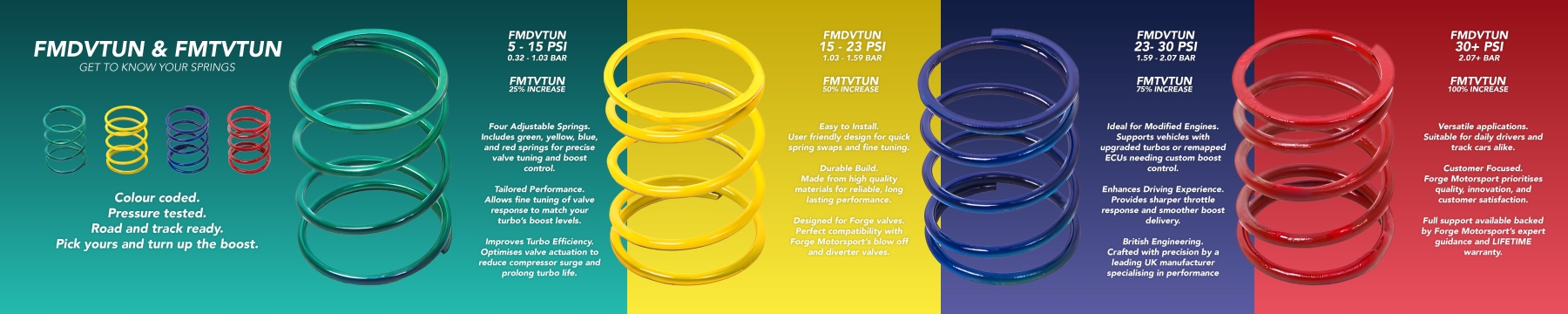

Valve Spring color coding: Green - 5-15 PSI (0.35-1.03 Bar), Yellow - 15-23 PSI (1.03-1.59 Bar), Blue - 23-30 PSI (1.59-2.07 Bar), Red - 30 + PSI (2.07 Bar +)
*The above figures are estimates only and should only be considered as a guideline*
Note: Serious or fatal damage may occur to the engine and associated components if this product is incorrectly matched to the individual engine requirements. Forge Motorsport nor any of it’s authorised distributors can assume any responsibility for any adverse effects resulting from the installation of this product. Please contact us if you are uncertain whether this kit is suitable for your valve.
*Please Note - The colours of the springs illustrated may differ to what you receive. All spring kits are brand new but are not sprayed. Colour is used as an identifier*
Check your vehicle compatibility: Click here
Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.
Product Reviews
Product Reviews
Be the first to review this product
Want to leave a review?
Login
Register FREE!
Compatible Vehicles
Instructions
Valve Spring Tuning Kit
Warranty
10 Year Warranty Information
The majority of Forge Motorsport products come with a limited 10 Year Warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.
For further information, please call our customer service team on +49(0)3222/1097-308 or email info@forgemotorsport.eu.
Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.
This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.
Shipping
European Shipping
We ship to selected EU countries as displayed during the checkout process.
Delivery service charges will vary depending on the quantity of product ordered, the related parcel size, and your destination.
Our shipping methods ensure safe and timely delivery of your new Forge products. For further information on cost and delivery times, please contact us if you require any more information via our contact page.
We reserve the right to change the delivery service and our shipping providers at any time.
Once a product has left our warehouse and is in the possession of the shipping company, any claims must be made directly with that shipper, however we may be able to assist in some cases.
FAQ's and other info can be found here.
Manufacturer & EU Contact Details
Manufacturer
Company Name: Forge Motorsport
Address: Unit 1A, Ashville Trading Estate, Gloucester, GL2 5EU, United Kingdom
E-Mail: info@forgemotorsport.co.uk
Phone: +44 1452 380999
EU Responsible Person
Company Name: Milltek Sport GmbH
Address: Gottlieb-Daimler-Str. 1-3, 53520 Meuspath
E-Mail: info@millteksport.de
Phone: +49 (0) 3222 1097308
Expert Answers
Does the fit the FMDVRMR for a renault megane rs?
Yes the spring tuning kit with product code FMDVTUN is compatible with the turbo mounted recirculation valve with product code FMDVRMR (Megane RS).
Dobry den Mam blow of ventil na audi A3 1.2tfsi V baleni bola nejaka pruzina no neviem kam ju namintovat,cinje to rezervna pruzina? Alebo montuje sa niekde ta pruzina Mam blow ventil a hadica ktomu a vsetko ale je tam ajnnejaka pruzina len neviem co snou,je to nahradna pruzina a nemontuje sa? Alebo je to nahradna pruzina ?
Pružina dodávaná voľne v súprave vyfukovacieho ventilu je možnosťou nastavenia pre zákazníkov, ktorí namapovali svoj motor na stupeň 1 alebo stupeň 2. V opačnom prípade má ventil dodaný v súprave už nainštalovanú pružinu, pričom nainštalovaná pružina má správny odpor pre štandardné modely, ktoré ešte neboli upravené.
Does this kit fit the. FMDV500A? If not which kit does?
Hello yes this is compatible with your DV.
Will this set for FMDVST180R for Fiesta st ?
Hello
This kit is NOT compatible with FMDVST180R. The kit you need is FMTVTUN.
Do these srpings fit in FMDV18?
Yes.
Do these springs fit in the dump valve kit for the smart roadster?
Yes, but only if you are looking to replace the main boost spring in the Forge Motorsport Smart Car twin piston blow off valve; otherwise, if it is the smaller idle spring, then the spring tuning kit product code is FMTVTUN.
Would this fit the BOV for FMDVHFTFSI?
Yes, the valve kit with part number FMDVHFTFSI is compatible with the dump valve spring tuning kit FMDVTUN.
Hi, I am running Evo 6 at 1.45 bar peak with yellow spring fitted to FMDVEVO14. the valve is open at idle and closed under load. Should the valve remain open at idle? Thanks.
Yes, this is normal. The boost port is held shut by the idle piston under tension of the idle spring during engine idle as the main boost piston is sucked up into the top of the valve via the smaller port at the top the of the valve; pressure flow reverts to vacuum when off the throttle via the small port and this is why you see the main boost piston in the open position during idle.
If i run 24 psi what spring should I use? I have green and is weak , maybe blue for 24 psi is just too stiff?
Blue may be a bit too strong; it depends on the model and the associated vacuum pressure.
If you experience wastegate flutter (turbo stall) the fitted spring is too strong; otherwise, if you note power loss in the lower gears at high revs (motorway driving) then the fitted spring is too weak.
Hello. What is the correct configuration of the small (FMTVTUN) and large spring for the FMDV004 valve at a pressure of 1.5 bar? Volvo C70 2,3T T5 Td04h-19T. thanks
Large spring would be yellow.
Hello compatible with FMDV001GTI
Hello yes this product will fit your valve.
Hello there. I have twin BOV on my N54 engine. Currently with yellow springs fitted but the BOVs are wide open at idle. Also if I use moderate throttle for acceleration, I can hear hissing due to BOVs not closing fully. Can you tell me the vacuum rating for each spring, please?
hello , the springs in question do not relate to your blow of valve , please can you give me the part number of the product you have.
Hi there just bought an I30n Proformance forge blow off valve and fit it amd I think the spring that it comes with is a little two harsh or strong as it’s only a quick short burst of blow off was wondering what the recommended spring would be for this vehicle
Hello
The speed of the noise is down to how the valve works with the Hyundai engine. Its side exit design gives all valve for the I30N this sound characteristic.
Hi will these springs fit the blow off valve kit Product code: FMDV12VAG. For the 1.2tsi Seat thanks
Hi William, yes these will fit that valve
Hello with the fmdv rmr which springs are included is the green to 1.03 bar included . or do you have to buy the spring set in addition .Valve Spring Tuning Kit FMDVTUN with the green
The FMDVRMR has the green spring installed off the shelf and the yellow spring is supplied loose with the valve for customers with higher boost pressure requirements.
Green - 5-15 PSI - installed in FMDVRMR.
Yellow - 15-23 PS - supplied loose with each FMDVRMR purchase.
Blue - 23-30 PSI
Red - 30 + PSI
Hello will these springs fit the FMWRX301 valve?
Thank you for your question, yes this is correct for FMWRX301
Hi, stage 2+ k04 tts 8j MK2 what psi spring is it blue ?
Hello
Blue spring is 18PSI running pressure.
for Audi SQ5 b9 3.0 tfsi stage 2 ECU+TCU which spring would be better yellow or blue? for FMDV13R
I would recommend a Yellow spring.
Hi will this fit the fmdv004
Hello yes this kit will fit FMDV004.
Hi there, are these the right springs for the FMDVR60A blow off valve?
Hello
No the spring kit you need is FMTVTUN it is smaller in size and fits the FMDVR60A.
Audi tt mk1 remapped running 16psi which spring colour do I need please
Hello
For stage one tune a Yellow spring is reccomended.
Good day, I have golf 7 gti st2, what spring I mast use?
hello , the spring that should be used is blue.
