Description
Product Description
Suitable for most turbo cars with an Air Flow Meter.

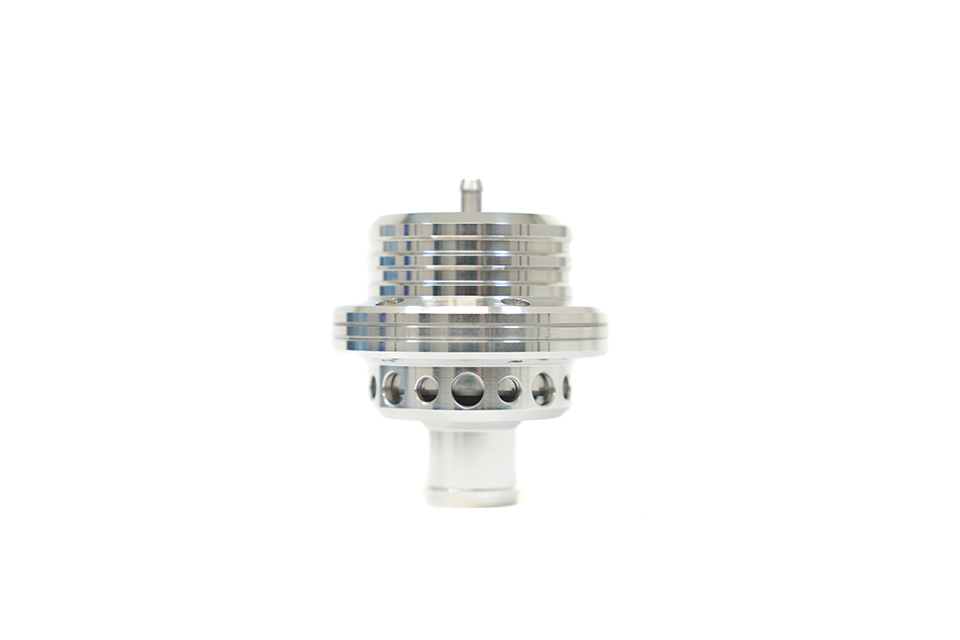

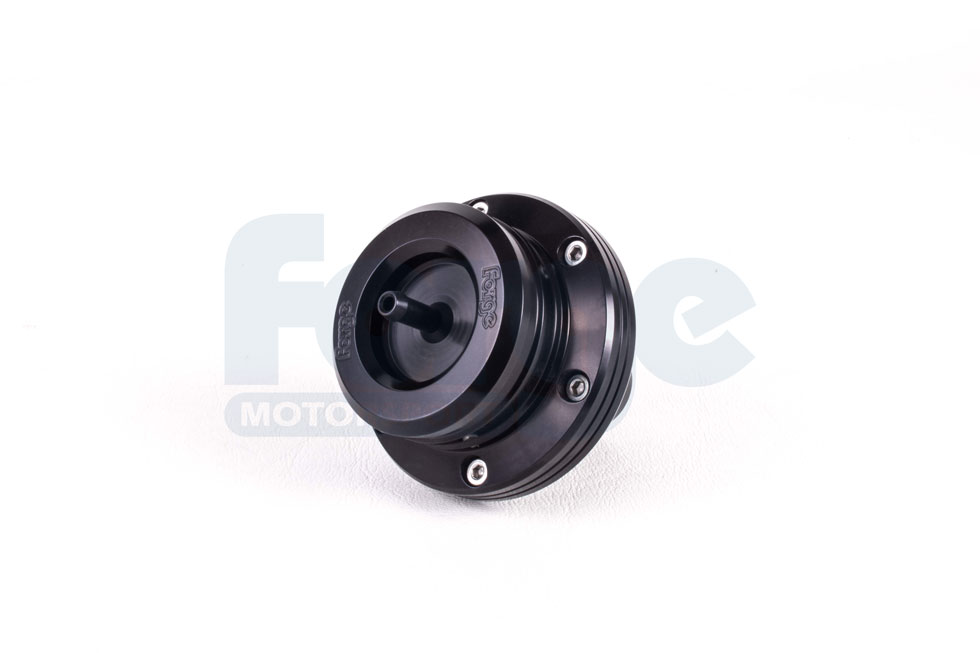

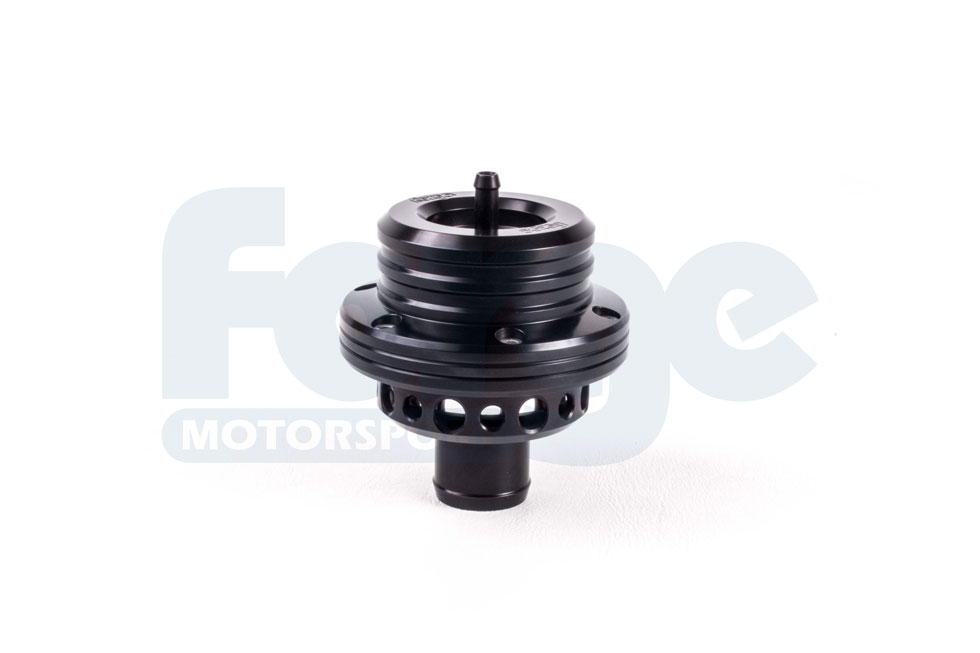

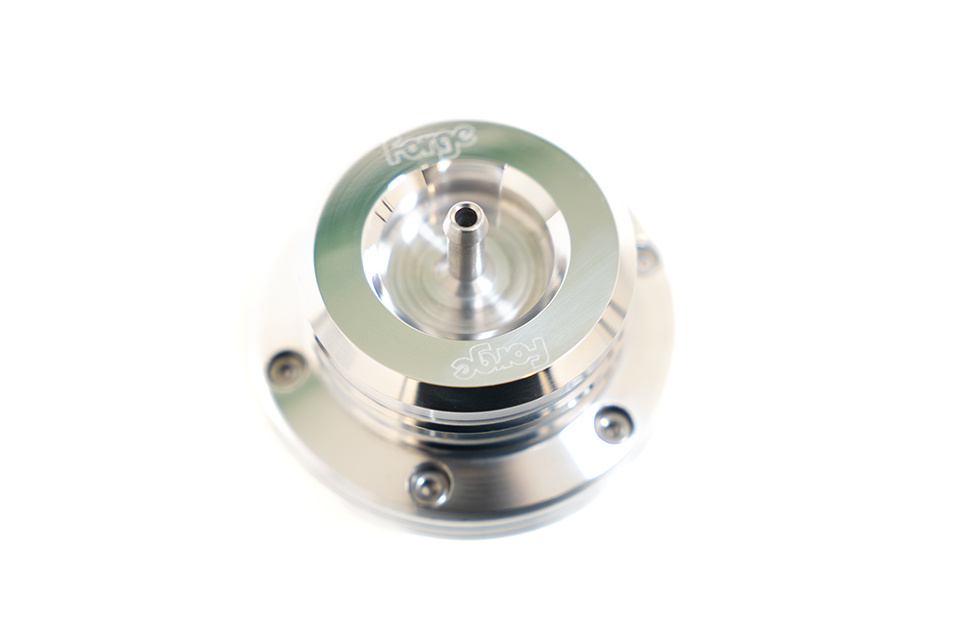

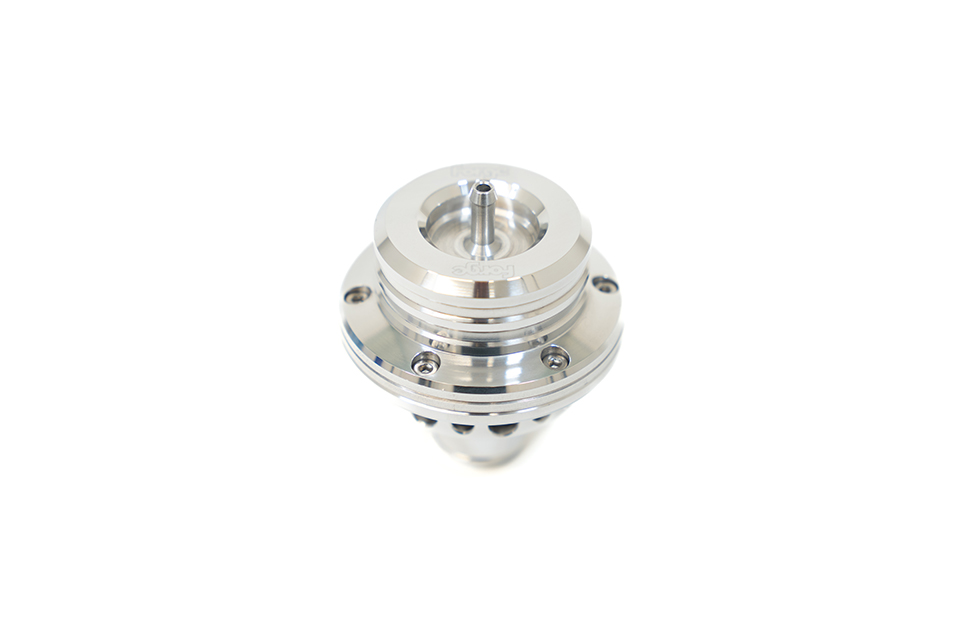

Made from billet aluminium, this atmospheric diverter valve dumps the charge-air to atmosphere creating the "Whoosh" sound when the throttle is lifted. This increases both quicker throttle response and higher clamping load to maintain boost pressure more reliably. Unlike single piston or diaphragm diverter valves, this uses counter balanced springs and dual pistons to prevent the valve from leaking air into the intake system at idle. This prevents our diverter valves suffering any of the failures associated with single piston and diaphragm type diverter valves.
All Forge Motorsport Dual-Piston Atmospheric Valves have been designed and built with the intent of venting 100% of the residual charge air remaining in your forced induction system to the atmosphere at throttle lift. While we have incorporated many elements into the design of the Dual-Piston valves to aid in their compatibility with mass air-flow sensor equipped vehicles, we cannot always guarantee that each individual’s application will be compatible with a valve that vents the charge air into the atmosphere.
Forge Motorsport nor any of it’s Authorised Distributors can assume any responsibility for any adverse effects resulting from the installation of this valve onto a vehicle whose engine-management-system, whether factory or aftermarket, is not capable of compensating for the loss of metered air through a vent-to-atmosphere valve such as this.
In The Box:
1 x FMDV004 Valve
1 x Forge Sticker
If you wish to tune this product to fit the needs of your engine, please see the spring tuning kits below.
The valve has a port size of 25mm
We recommend servicing your valve every 3 years, or 20,000 miles, whichever comes sooner
Check your vehicle compatibility: Click here
Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.
Product Reviews
Product Reviews
Be the first to review this product
Want to leave a review?
Login
Register FREE!
Compatible Vehicles
Warranty
10 Year Warranty Information
The majority of Forge Motorsport products come with a limited 10 Year Warranty (brakes pads excluded). All warranty claims must be accompanied by the original proof of purchase to enable us to help you. Failure to supply this proof will result in your claim or enquiry being denied.
For further information, please call our customer service team on +49(0)3222/1097-308 or email info@forgemotorsport.eu.
Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean you cooler and thoroughly rinsed away. We recommend that you should inspect your product on a regular basis for bent and/or crushed fins. Any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used and added to the coolant system. Be sure you never mix coolant and always use distilled water.
This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier’s instructions, or any alteration or repair carried out without the supplier’s approval.
Shipping
European Shipping
We ship to selected EU countries as displayed during the checkout process.
Delivery service charges will vary depending on the quantity of product ordered, the related parcel size, and your destination.
Our shipping methods ensure safe and timely delivery of your new Forge products. For further information on cost and delivery times, please contact us if you require any more information via our contact page.
We reserve the right to change the delivery service and our shipping providers at any time.
Once a product has left our warehouse and is in the possession of the shipping company, any claims must be made directly with that shipper, however we may be able to assist in some cases.
FAQ's and other info can be found here.
Manufacturer & EU Contact Details
Manufacturer
Company Name: Forge Motorsport
Address: Unit 1A, Ashville Trading Estate, Gloucester, GL2 5EU, United Kingdom
E-Mail: info@forgemotorsport.co.uk
Phone: +44 1452 380999
EU Responsible Person
Company Name: Milltek Sport GmbH
Address: Gottlieb-Daimler-Str. 1-3, 53520 Meuspath
E-Mail: info@millteksport.de
Phone: +49 (0) 3222 1097308
Expert Answers
Will this valve contain the green spring? If not do I need the valve spring tuning kit or the valve small spring tuning kit?
Hi Koen, this valve comes built with a blue spring, however if you know you require this to have a green spring instead you can state this in the comments box of your order.
Otherwise the spring tuning kit for this valve is FMDVTUN.
I hope this helps
Will this valve be correct for a SR20DET Nissan engine on aftermarket ECU, with no AFM. Current running HKS SQV?
HKS valve fitment tend to have a valve model specific (flanged) fitment, where the FMDV004 is only suited to 25mm ID hose port fitment. Otherwise, in theory, yes the FMDV004 twin port valve will function appropriately if successful hose fitment is achieved but may need spring tuning.
Hello, will this fit nicely to a classic mini turbo lump running 7 psi at the moment looking to increase to 10psi .
hello yes this will work perfectly, please select a green spring ,
Hello, does it fit a Toyota MR2 Rev3 with turbo at stock boost. thanks
hello , yes this will work for you application, you may need a t-piece to mount this to in the boost pipe if there is no factory BOV.
Hello , is this compatible with saab 9-5 aero running 280 bhp running at 1.3 bar of boost . Thanks
Hello please send me a picture of your oem valve
Hi is this compatible with subaru impreza gc8, running 340 bhp at 1.4 bar of boost Thankyou keith. MY97
Fitted with a yellow spring this would be compatible with this boost pressure.
hi I need a service kit this dual valve thanks
follow this link https://www.forgemotorsport.co.uk/Forge_Motorsport_Valve_Service_Kit--product--792.html
and select FMDV004 from the drop down list
Hi what colour spring comes as Standard with the FMDV004? Thanks
Hello. The FMDV004 comes with a blue dump valve spring as standard: https://www.forgemotorsport.co.uk/Dump_Valve_Spring_Single--product--825.html
